Χαρακτηριστικά

Προδιαγραφές

Condition: New

Plastic Type: PS

Max.Forming Height(mm): 100 mm

Forming Width (mm): 1000 mm

Forming Length (mm): 1400 mm

Heating Power (kW): 200 kW

Power Supply: 380V

Type: Vacuum Forming Machine

Product Type: Fast Food Box

Automatic: Yes

Voltage: 380V 50HZ 3Phase

Dimension(L*W*H): 15*6*3m

Weight (T): 18 T

Warranty: 1 Year

Key Selling Points: Automatic

Applicable Industries: Manufacturing Plant

Showroom Location: None

After-sales Service Provided: Video technical support, Field installation, commissioning and training, Online support

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

Πιστοποίηση: ISO CE

Weight: 18T

Name: plastic food box vacuum forming machinery

Application: Plates, food container/tray/bowl

Working speed: 3-5s/mould (according to your capacity)

Controller: Hydraulic Station/PLC Screen

Plastic Processed: PS

Key word: take away container production line

Forming area: 1000*1250/1000*1400 MM3

Forming pressure: 35T

Power(W): 200kw

Βασικές πληροφορίες

Πιστοποίηση: ISO CE

Πληρωμής & Αποστολής Όροι

Περιγραφή προϊόντων

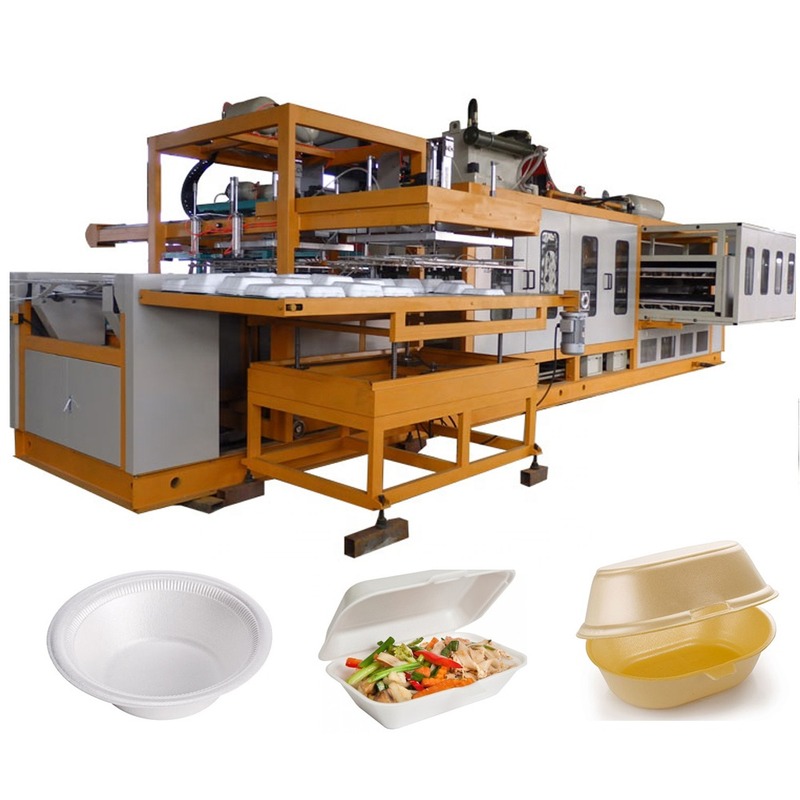

Polystyrene ps plastic food container machine styrofoam food box making machine

ps plastic food container machine styrofoam food box making machine production line includes 3 PARTS:
(1) PS foam sheet extrusion line: make PS foam sheet from raw material
(2) Automatic Vacuum Forming and Cutting Integrated Machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc. (we can design mold according to customer requirements)
(3) PS Crushing and Recycling Machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.

Features for Take away food container making machine lunch box making machine

1. Suck and pull the food containers up. Even the containers don’t be sucked out successfully, this won’t affect next move.
2. There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.
3. Heater box separate into three parts, hydraulic cutting speed is faster, and use mechanical arms to suck products, all above methods reduce the whole working time.
4. Extend mold length, making the forming mold area larger and improving the production efficiency.

Model	Unit	HR-S1800	HR-M1080
Collection method		Staking	Machanical arm
Max. forming area	mm	1000750 10001100	1000×1250 1000*1400
Max. forming depth	mm	100	100
Production efficiency	s/die	4~5	2.8~5
Forming pressure	T	20	35
Mounted power	kw	170	200
Total weight	T	16	18
Installation size	m	153.53	1563

Our Services
