Χαρακτηριστικά

Προδιαγραφές

Τύπος επεξεργασίας: Πλαστική μηχανή Thermoforming

Πλαστικός τύπος: PVC, CP, PA, PP, PET

Max.Forming ύψος (χιλ.): 120 χλστ

Διαμόρφωση του πλάτους (χιλ.): 780 χιλ.

Διαμόρφωση του μήκους (χιλ.): 700 ΚΚ

Ταχύτητα παραγωγής (κύκλοι/λ.): 20-25cycle/min

Τηλεοπτική εξερχόμενος-επιθεώρηση: Παρεχόμενος

Έκθεση δοκιμής μηχανημάτων: Παρεχόμενος

Τύπος μάρκετινγκ: Νέο προϊόν 2020

Εξουσιοδότηση των τμημάτων πυρήνων: 1 έτος

Τμήματα πυρήνων: PLC, μηχανή, δοχείο πίεσης, εργαλείο, αντλία

Πίεση αέρα (MPA): 0,6 MPA

Πάχος φύλλων (χιλ.): 0.1 - 2,5 χιλ.

Δύναμη θέρμανσης (KW): 30 kw

Αέρας Comsumption (λ/λ): 130 λ/λ

Νερό Comsumption (λ/λ): 100 λ/λ

Όρος: Νέος

Τύπος προϊόντων: Κιβώτιο γρήγορου φαγητού

Τάση: 380V ±10%

Διάσταση (L*W*H): L900CM*W220CM*H270CM

Βάρος (τ): 7 Τ

Εξουσιοδότηση: 1 έτος

Εφαρμόσιμες βιομηχανίες: Ξενοδοχεία, εγκαταστάσεις κατασκευής, τρόφιμα & λιανικής πώλησης, τροφίμων καταστημάτων, τροφίμων &

Βασικά σημεία πώλησης: Υψηλή παραγωγικότητα

Θέση αιθουσών εκθέσεως: Βιετνάμ, Πακιστάν, Ινδία, Σρι Λάνκα, Νιγηρία

Τελειωμένος - προϊόντα: Μίας χρήσης κιβώτιο γρήγορου φαγητού, κιβώτιο φρούτων σαλάτας, καλλυντικό δίσκων, καπάκι φλυτζανιών

Σειρά εφαρμογής: Εμπορευματοκιβώτιο τροφίμων, καλάθι φρούτων, clamshell, δίσκοι

Υλικά: Ισχία, PVC, CP, PA, BOPS, PP, Bopp, EPS, PET

Διαμόρφωση της μεθόδου: Πάνω-κάτω (δύο επιπέδων φούρνος) τη διαμόρφωση

Υπηρεσία μεταπωλήσεων παρεχόμενη: Τεχνική υποστήριξη βίντεο, Δωρεάν ανταλλακτικά, Επιτόπια εγκατάσταση, θέση σε λειτουργία και εκπαίδε

Μετά από την υπηρεσία εξουσιοδότησης: Τηλεοπτική τεχνική υποστήριξη, σε απευθείας σύνδεση υποστήριξη, ανταλλακτικά, συντήρηση τομέων και υ

Θέση τοπικής υπηρεσίας: Βιετνάμ, Ινδία, Σρι Λάνκα, Νιγηρία

Βασικές πληροφορίες

Πιστοποίηση: ce

Πληρωμής & Αποστολής Όροι

Περιγραφή προϊόντων

Product Overview

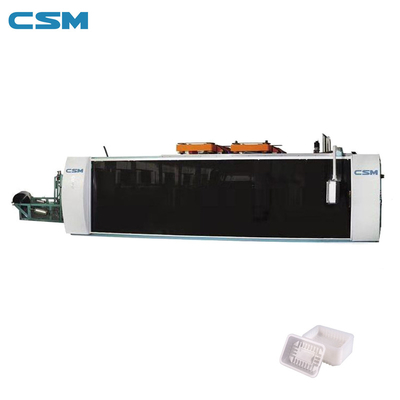

Three Station Lunch Box Plastic Negative Pressure Machine

The machine combines forming, cutting, and stacking into process,which is widely used and acknowdged by most of our customer. It can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray, etc. The machine is completely driven by servo motor with features of stable operation, low noise, high efficiency and quality.

Technological process:

---Carrying material(cylinder drives the chain to work)

---heating(cylinder drives the electric furnace to lift in order to make a proof)

---pulling( cylinder drives the chain)

----lifting the lower die, falling the upper die(cylinder drives)

----vacuum forming(vacuum pump air admission )

---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing)

----drawing of patterns(gas drives)

---pulling-cutting

---stacking on the line.

Product Paramenters

No.	Item	Data
1	Suitable Products	Disposable plastic lids,egg trays,clamshell boxes, containers, plates
2	Suitable Materials	PVC.PP.PET.PS.HIPS.PE.HDPE.PC.ABS.PLA sheet
3	Forming Size:	W780*L700mm
4	Thickness Range	0.1-2.5mm
4	Forming Area:	815mm
5	Max.Forming Depth	120mm
6	Industry Voltage	380V/50Hz (Three Phase, Four Wires)
7	Total Power/Actual power consumption	Heating oven Max. 85 KW, usually use 20-45KW/h
8	Max. Speed	20-25 Cycles per minute(Depending on material and thickness)
9	Max. Punching Force	80 Tons
10	Air Pressure	0.6MPa
11	Air Consumption	> 4000ℓ/min ( with Forming body )
12	Cooling Water	Normal Tap Water Recycle Cooling
13	Noise	<75DB
14	Machine Dimension	6000kg

Main Feature

A. This machine adopts integrated gas and electricity loading system.
B. Stainless steel pressure roller and automatic feeding (single roll material weight can reach 600-1000KG)
C. The pre-heating device is installed on both sides of the film.
D. There are multiple excessive rollers to ensure that the material will not running when stretching the sheet.
E. The heating furnace has forward and backward functions. It uses photoelectric eyes to detect the sag of the sheet after heating. When it exceeds a certain limit, it provides an alarm and has function of Exit the heating furnace to prevent the sheet from falling out of the heating furnace and causing fire.

Main Configuration

No.	Part	Brand
1	Vacuum Pump	Rietschle Germany
2	PLC	Delta Taiwan
3	Touch Screen	Delta Taiwan
4	Vacuum Solenoid Valve	SMC Japan
5	Temperature Control Module	AOYI
6	Auxiliary Relay	Schneider France
7	AC Contactor:	Schneider France
8	Air Switch	Schneider France
9	Transducer	Omron Japan
10	Linear Guide	Hiwin Taiwan
11	Oil-water Separator	Mindman Taiwan
12	Clamp Servo Motor	Delta Taiwan （4.5KW）
13	Upper mold Solenoid valve	Delta Taiwan
14	Lower mold Solenoid valve	Delta Taiwan
15	Decelerator	FALK USA
16	Bearing	SKF Swiss
